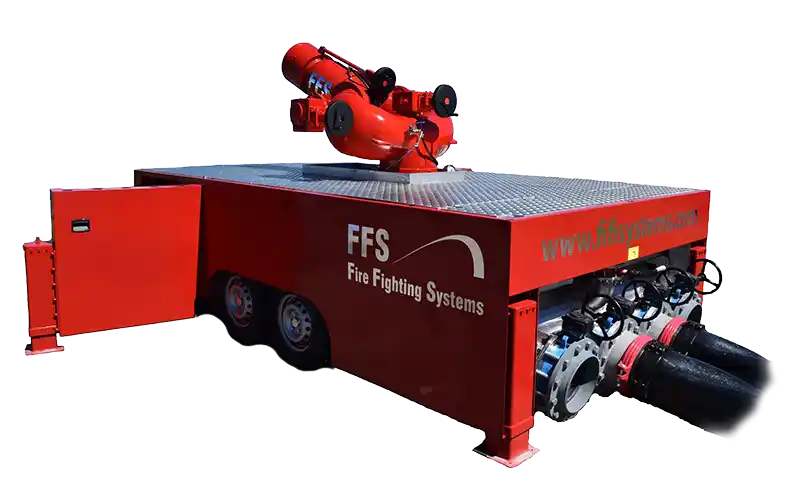

The MT 4800 is developed for large-scale industrial firefighting when the required response exceeds conventional capacity.

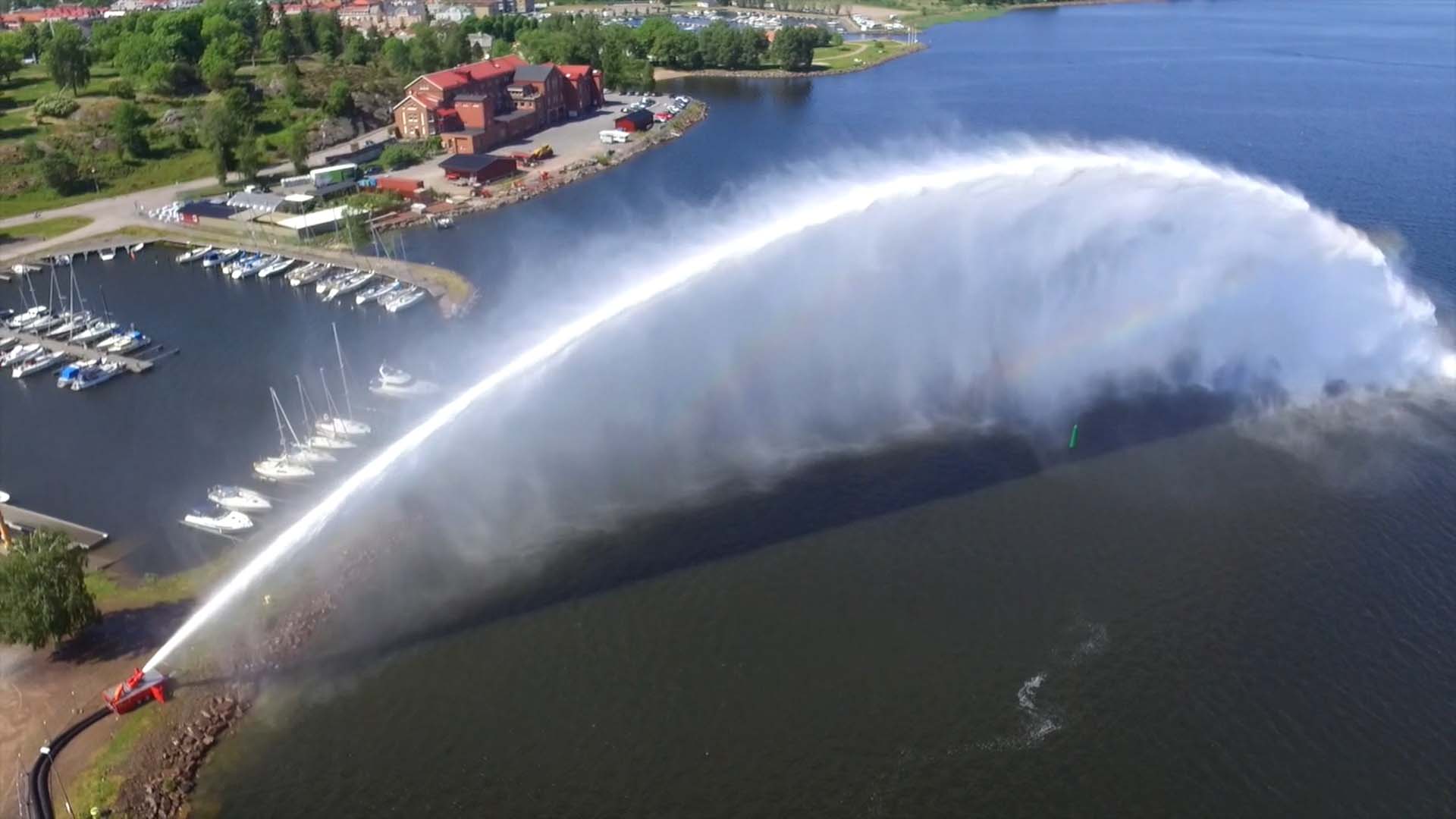

Delivering up to 80 000 LPM at 10 bar (145 psi), it provides the volume and reach needed to manage major incidents where sustained, high-output flow is critical to gaining and maintaining control. Full 360° rotation and a wide elevation range ensure accurate positioning and control of the monitor stream.

This level of output allows large areas to be covered effectively, reducing the need for multiple monitors and simplifying coordination during major incidents.

Max Capacity

Up to 80 000LPM
(22 000 GPM)

Pressure

10 bar
(145 psi)

Design Pressure

16 bar
(232 psi)

Rotation

360°

Elevation Range

+25° to +80°

Weight

Approx. 3450 kg

Material

AISI 316L stainless steel

Ballast Tank

6000 L

Control at Extreme Flow

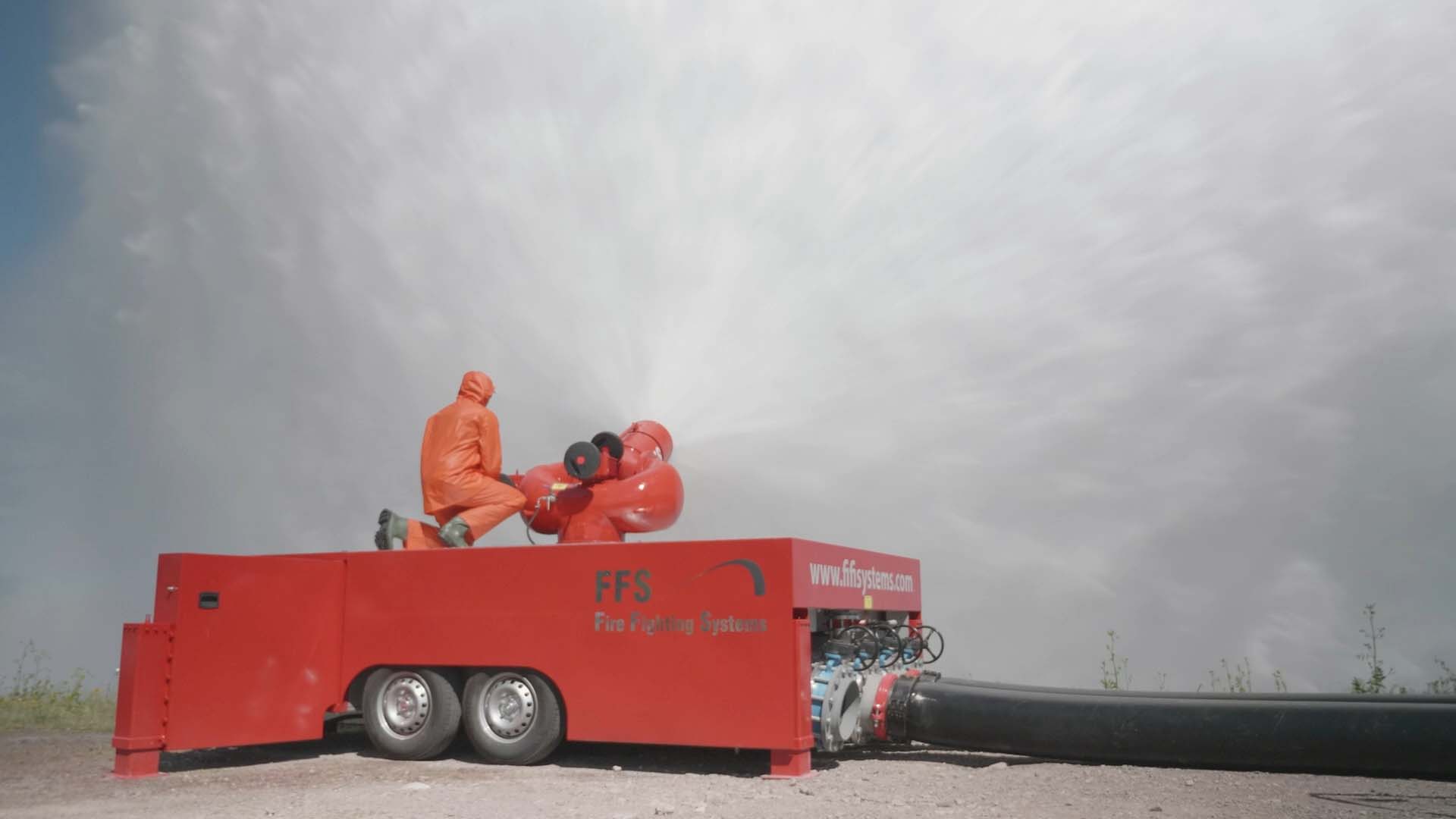

The MT 4800 is built to operate at very high flow while remaining stable and controllable.

The combination of weight, ballast and support keeps the unit planted, allowing the monitor to be operated with accuracy and consistency under full load.

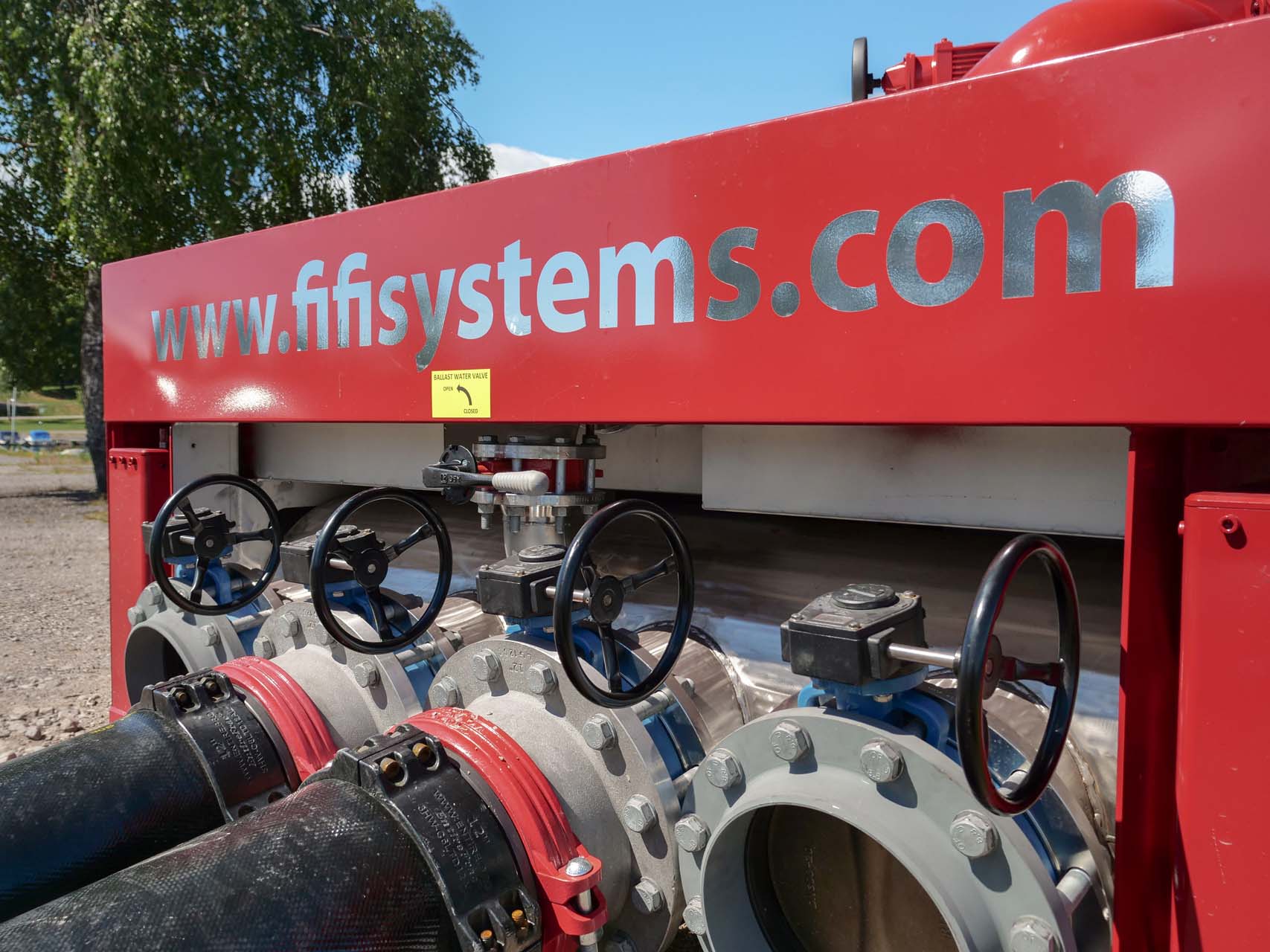

Four DN300 inlets provide the supply required to sustain continuous high-flow operation, while low-positioned connections reduce hose handling and support efficient setup.

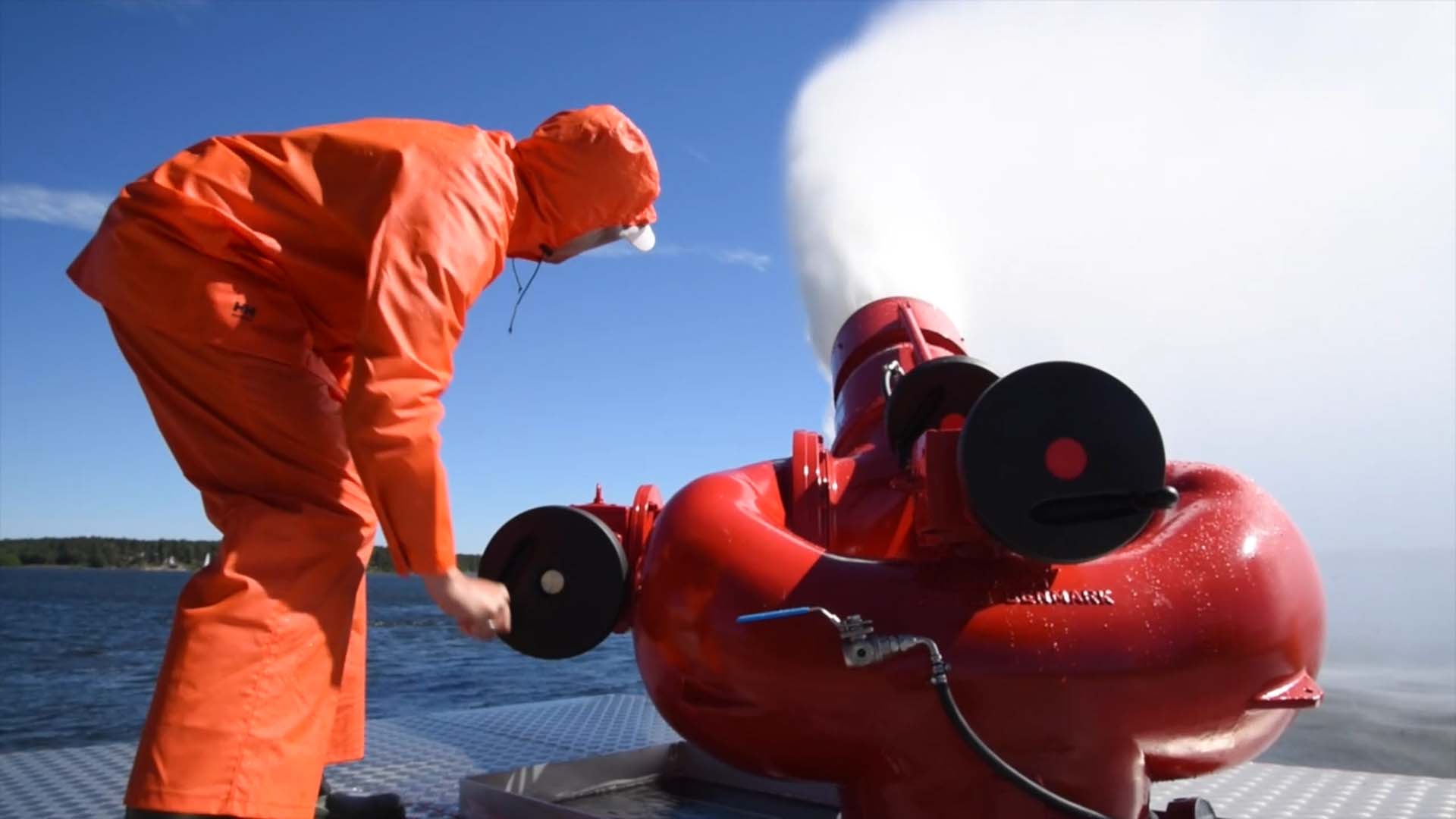

Responders work from a solid, anti-slip aluminium platform with full control of rotation, elevation and stream direction throughout operation. The monitor can also be operated remotely, allowing control to be maintained at a safe distance when required.

The unit can be used for both water and foam application, depending on operational requirements.

Despite its size and output, the unit remains practical to deploy. It can be transported and positioned using standard site vehicles, allowing high-capacity firefighting to be brought in where it is needed.

‍
