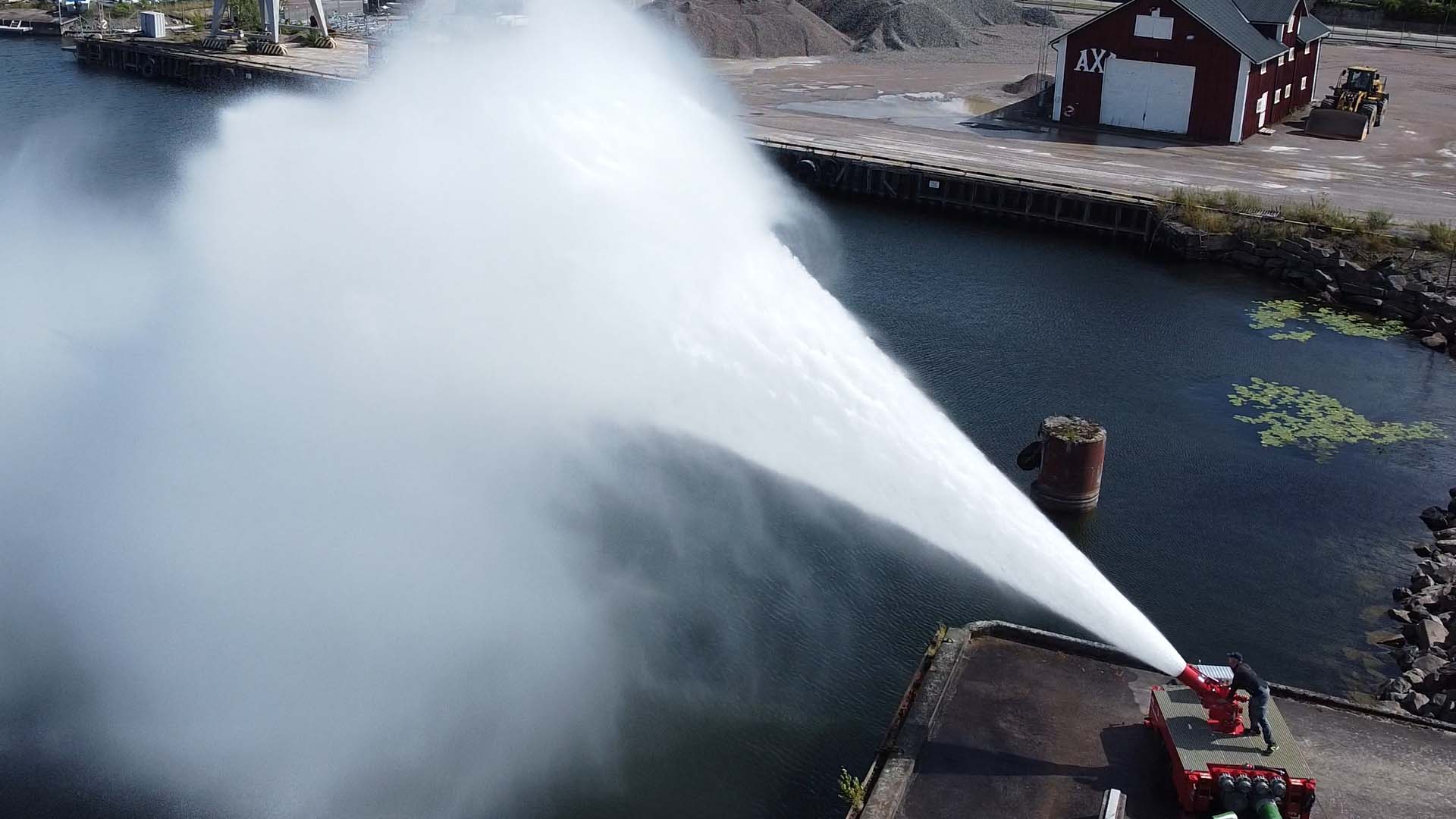

The MT 2400 - 4×8” is developed for firefighting scenarios where high flow and reliable performance are critical to controlling the incident. Delivering up to 49,000 LPM (13,000 GPM) at operational pressure, it provides the output required for large-scale firefighting, matching the performance of the standard MT 2400.

Based on the same proven platform, this configuration features four 8” inlet connections instead of larger inlet sizes. This allows the unit to be adapted to different site layouts, regional standards and available equipment, without compromising overall performance.The monitor and trailer are engineered as one integrated unit, with internal piping designed to minimise pressure loss and maintain efficient flow to the nozzle.

Max Capacity

Up to 49 0000 LPM (13,000 GPM)

Pressure

7-10 bar (100-145 psi)

Design Pressure

16 bar (232 psi)

Rotation

360°

Elevation Range

+ 15° to + 80°

Dry Weight

Approx. 2100 kg

Material

AISI 316L stainless steel

Operation

Manual gearing, optional remote

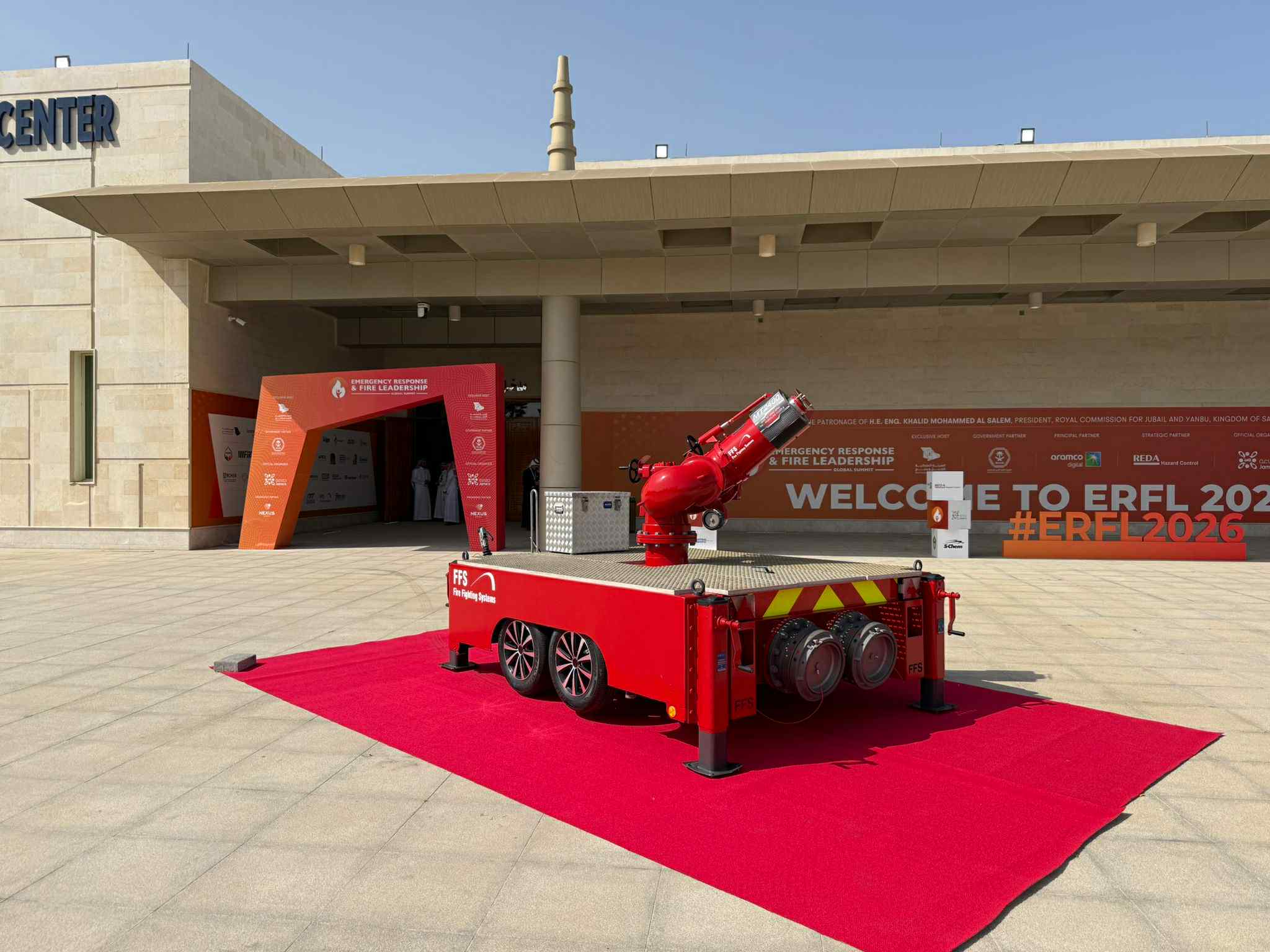

Flexible and Stable High-Output Operation

The MT 2400 – 4×8” is engineered for both adaptable integration and controlled performance at full capacity. Its 4 × 8” inlet configuration allows the unit to be aligned with site-specific requirements, regional standards, or preferred hose and pump setups, making integration into existing infrastructure straightforward and deployment with available equipment more efficient. All inlet connections are positioned low on the trailer to reduce hose handling fatigue and simplify setup in the field.

Maintaining the same stability-focused design as the standard MT 2400, the unit features an integrated ballast tank—filled directly from the feed water line—working in combination with support legs and a lowerable chassis to ensure predictable, stable operation under high flow. An anti-slip working platform provides secure footing, while the monitor can be operated via geared handwheels for precise manual control, with optional remote operation available.
