The MT 2400 is designed for industrial firefighting operations where large volumes of water or foam must be delivered accurately over distance to control major incidents. Delivering up to 46 000 LPM (12 000 GPM), it provides the reach and sustained flow required for tank protection, exposure cooling and wide-area coverage across refineries, terminals and petrochemical facilities.

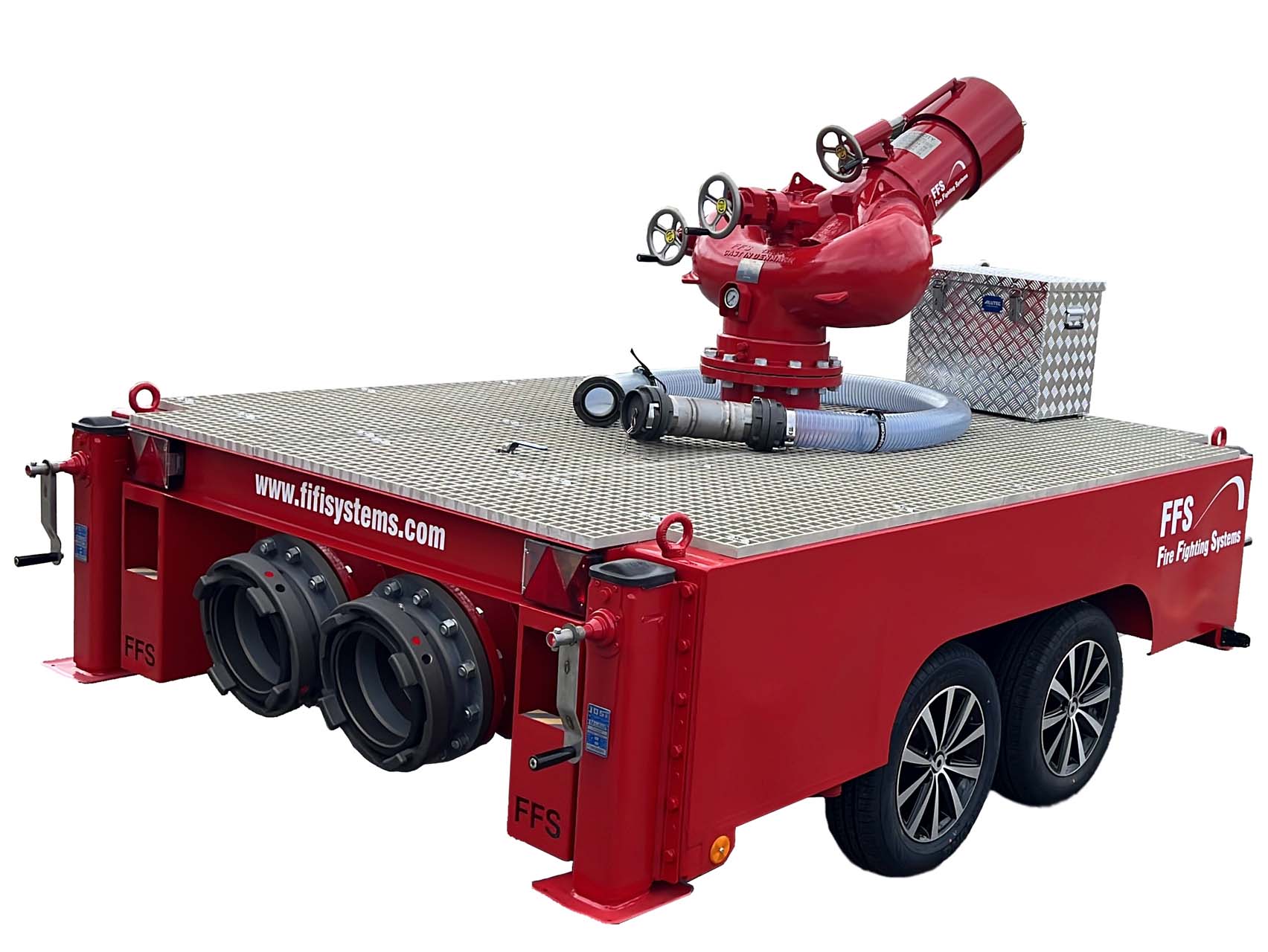

The monitor and trailer are engineered as one integrated system, with internal piping designed to minimise pressure loss and maintain strong throw performance at very high flow rates. Full 360° rotation and a wide elevation range allow precise stream positioning across large industrial hazard areas as conditions change.

Designed for rapid deployment, the MT 2400 can be transported, positioned and brought into operation quickly using standard site vehicles, while low-mounted inlet connections simplify hose handling during setup.

Max Capacity

Up to 46 000 LPM
(12 000 GPM)

Pressure

10 bar
(145 psi)

Ballast Tank

3000 L

Rotation

±180°

Elevation

+25° to +80°

Weight

Approx. 1900 kg

Throw Length

Up to 150m

Inlets

2 x DN 300 / 4 x 6"

Stable Operation Under Full Flow

A 3 000-litre ballast tank, filled directly from the water supply, works together with the lowerable chassis and adjustable support legs to maintain stable and controlled operation at full output.

Low-mounted inlet connections simplify hose handling during deployment, while the diamond-pattern anti-slip aluminium platform provides secure footing and clear operator access around the monitor.

AISI 316L stainless steel and Ni-Al bronze construction provide resistance to seawater, foam and corrosive industrial environments, supporting reliable operation in refineries, terminals and coastal facilities.

The monitor uses an internal geared drive system for controlled movement and reduced exposure of critical operating components, helping simplify maintenance and support dependable long-term operation in demanding environments.

Optional electric remote operation is available, including wireless control.

Key Benefits

01

Long-Range Industrial Firefighting

Delivers up to 46 000 LPM (12 000 GPM) with long throw performance for tank protection, exposure cooling and large hazard-area coverage.

02

Rapid Deployment and Repositioning

Integrated trailer configuration, low-mounted inlets and practical transport dimensions allow the MT 2400 to be positioned, deployed and repositioned quickly as incident conditions change.

03
