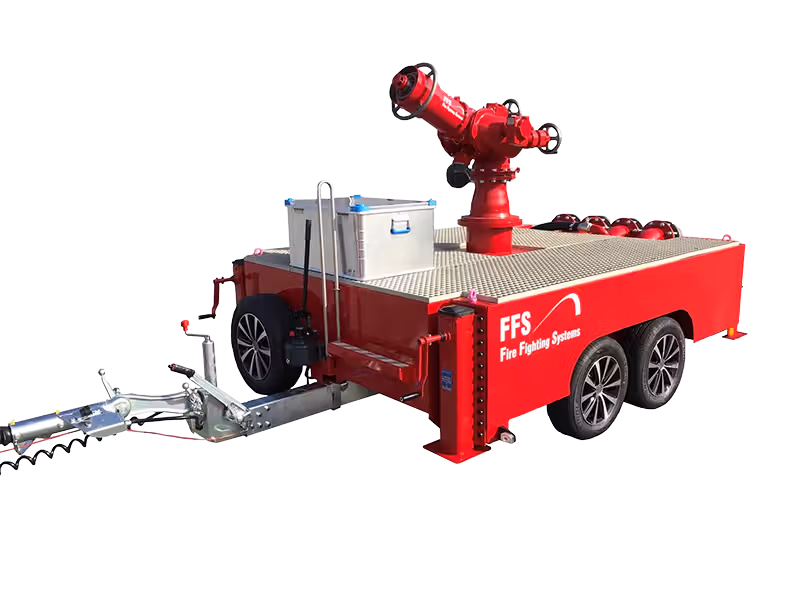

The MT 1200M is developed for firefighting scenarios where consistent high flow and controlled monitor operation are required to manage large hazard areas.

Delivering up to 23 000 LPM (6 000 GPM) at 10 bar, it provides the capacity needed for industrial firefighting, including tank protection, bund coverage and wide-area application. The unit offers full 360° rotation and a wide elevation range, allowing accurate placement of water or foam across the incident.

Compared to the lighter MT 1200L, the MT 1200M is designed with a larger elevation range, a heavier chassis and an integrated ballast system, ensuring stable and predictable operation under full flow conditions.

Max Capacity

Up to 23 000 LPM
(6 000 GPM)

Pressure

10 bar
(145 psi)

Design Pressure

16 bar
(232 psi)

Rotation

360°

Elevation Range

+10° to +80°

Weight (Dry)

Approx. 1700 kg

Material

AISI 316L stainless steel

Support Legs

4 × adjustable

Engineered for Stability and Control

The MT 1200M is designed to remain stable and controllable at full operating capacity.

An integrated ballast tank is filled prior to operation, increasing mass and lowering the centre of gravity to counter reaction forces from the monitor. Four support legs allow the trailer to be levelled and secured on site, ensuring safe and stable operation across the full rotation and elevation range.

The chassis and structural design provide a solid operating platform, allowing the monitor to be used with confidence during sustained high-flow operation.

Water inlet connections are angled and positioned for easier handling of large-diameter hoses, supporting practical deployment in real conditions.
