FFS · Land-based · Monitor trailer · MT 1200L
MT 1200L - Lightweight Monitor Trailer
Fast to position. Powerful in action.
.svg)

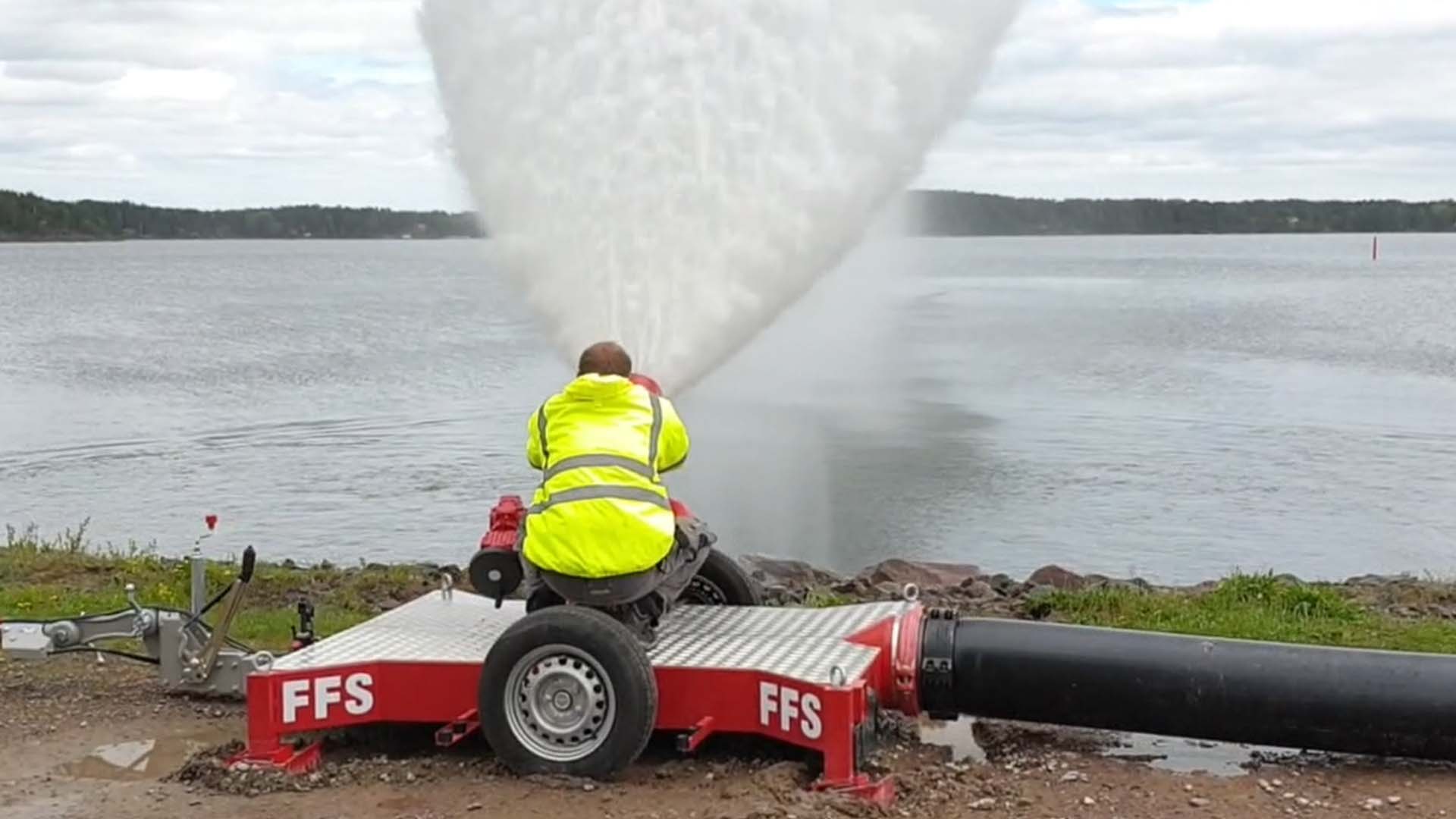

The MT 1200L is developed for firefighting scenarios where mobility and speed of deployment are as important as flow capacity.

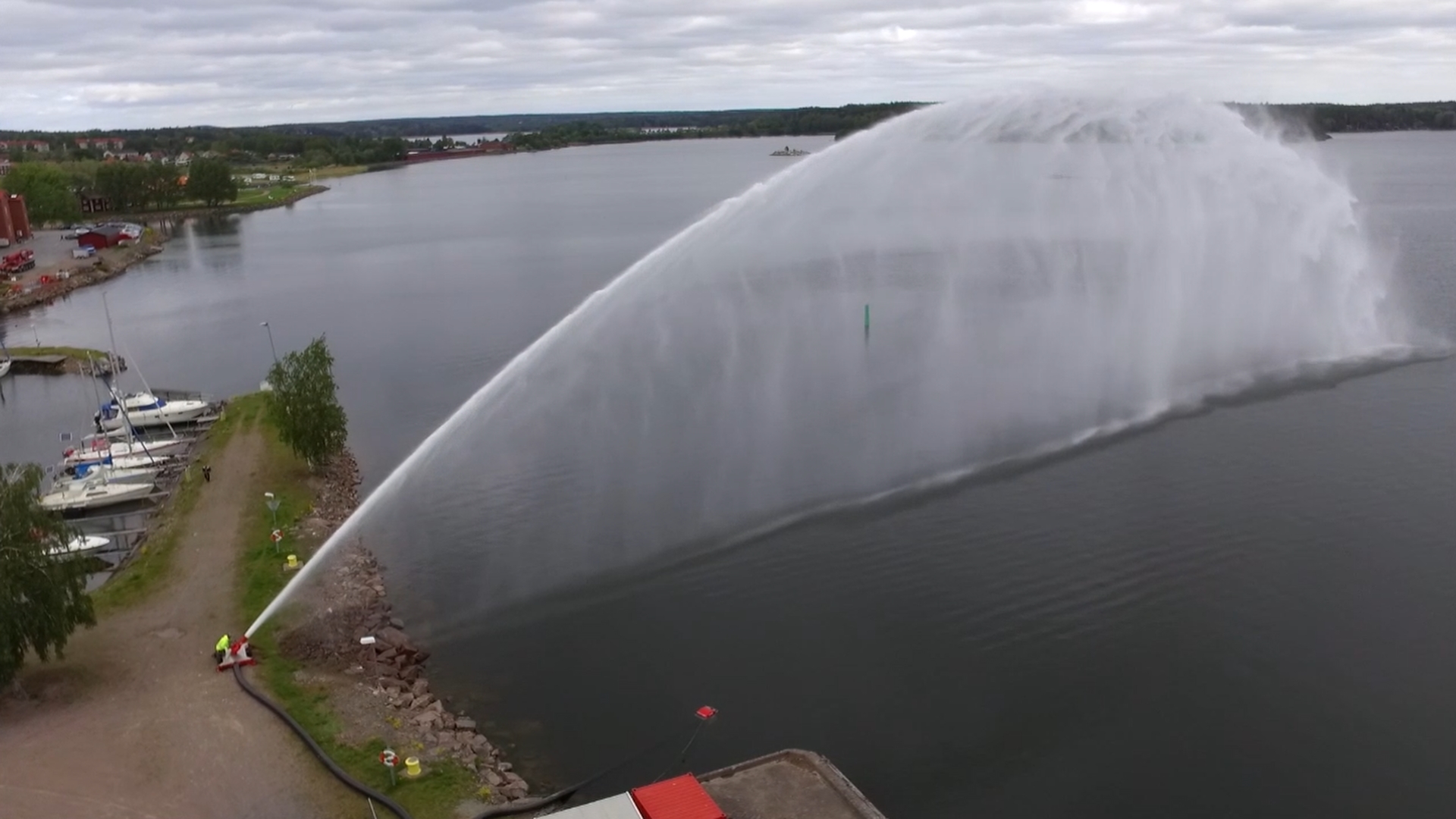

Delivering up to 23 000 LPM (6 000 GPM) at 10 bar, it provides the performance required for mid- to large-scale incidents, while remaining one of the lightest units in its class at approximately 600 kg.
Built around the FFS 1200 monitor, the unit provides full 360° rotation and a wide elevation range, allowing accurate positioning and effective coverage across the incident.
Delivering up to 23 000 LPM (6 000 GPM) at 10 bar, it provides the performance required for mid- to large-scale incidents, while remaining one of the lightest units in its class at approximately 600 kg.
Built around the FFS 1200 monitor, the unit provides full 360° rotation and a wide elevation range, allowing accurate positioning and effective coverage across the incident.
Max Capacity
Up to 23 000 LPM
(6 000 GPM)
(6 000 GPM)
Pressure
10 bar
(145 psi)
(145 psi)
Design Pressure
16 bar
(232 psi)
(232 psi)
Rotation
360°
Elevation Range
+25° to +80°
Weight
Approx. 600 kg
Material
AISI 316L stainless steel
Support Legs
4 × static
Lightweight Mobility. Stable Operation.

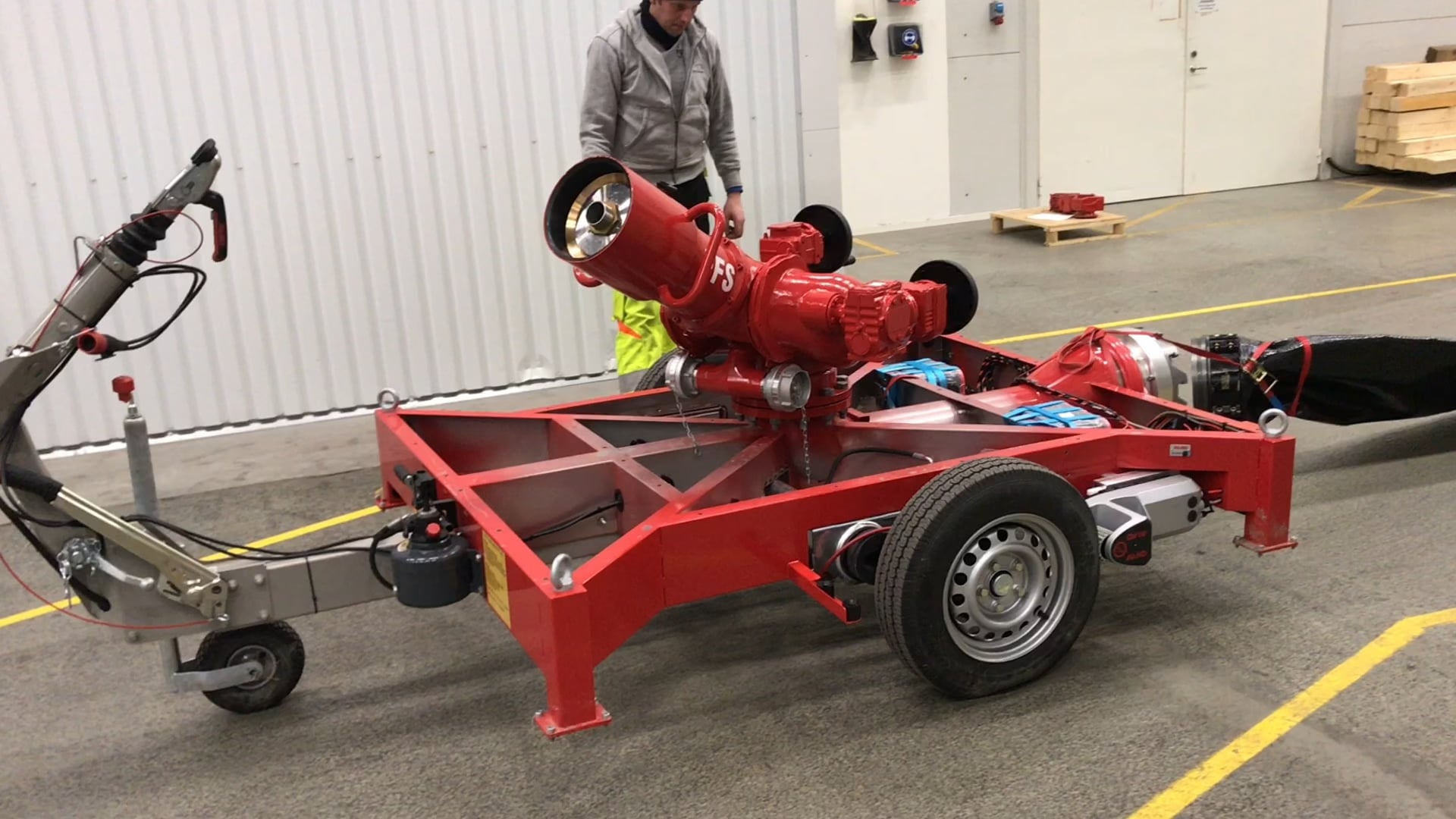

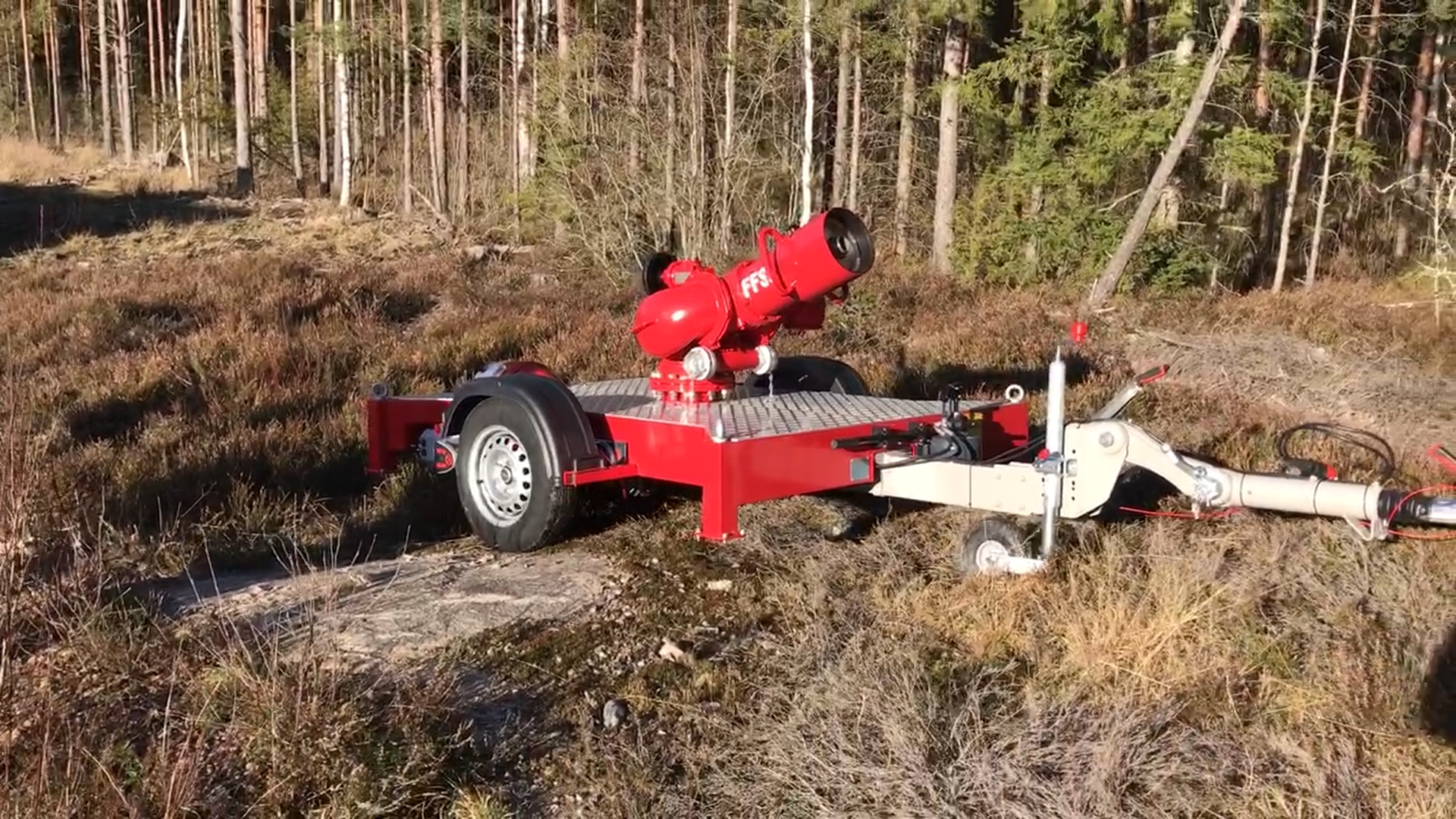

The MT 1200L is engineered to be moved quickly and perform reliably once deployed.
At approximately 600 kg, it can be transported and positioned with minimal effort, supporting rapid deployment in time-critical situations.
To ensure stability under flow, the unit is equipped with a lowerable chassis and four support legs, providing a stable operating platform even at full capacity.
Low-positioned inlet connections reduce hose handling during setup, while a diamond anti-slip aluminium platform provides safe footing for responders during operation.

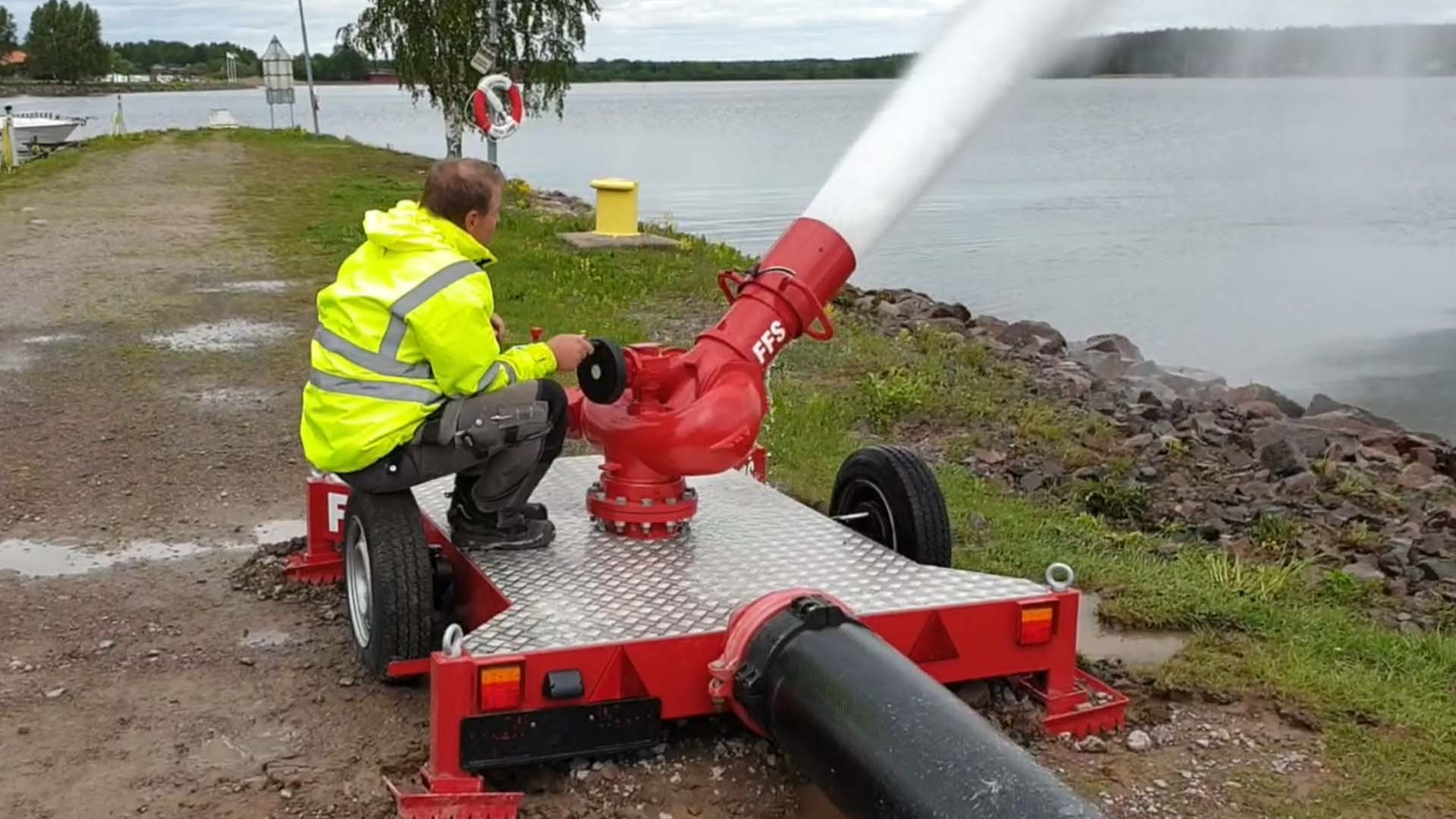

The monitor is operated via geared handwheels for precise manual control, with optional remote operation available where required.
Key Benefits
01
Lightweight and Rapidly Deployable
At just 600 kg, the unit can be quickly transported, positioned and brought into operation using small vehicles.
02
High-Capacity Performance
Delivers up to 23 000 LPM with full rotation and elevation control for effective firefighting coverage.
03
Stable and Controlled Under Flow
Lowerable chassis, support legs and low centre of gravity ensure predictable operation at full output.
Frequently Asked Questions
What flow can the MT 1200L deliver?
How mobile is the MT 1200L?
Is the unit stable during operation?
Can the monitor be operated remotely?
Is it suitable for foam application?
What is a lightweight monitor trailer used for in industrial firefighting?
