The MPU 2400 is built for firefighting scenarios where maintaining high-volume flow is critical to controlling the incident.

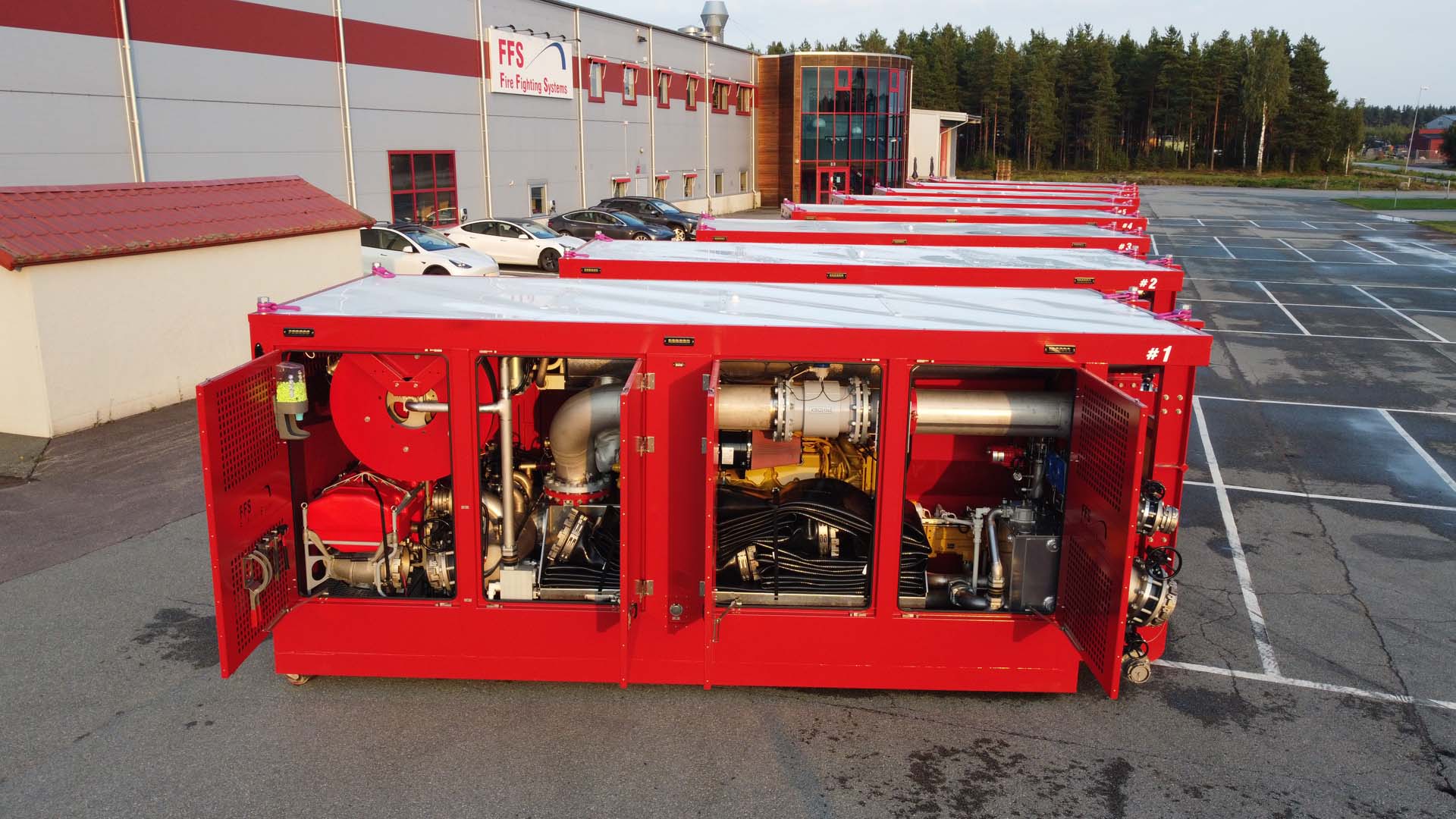

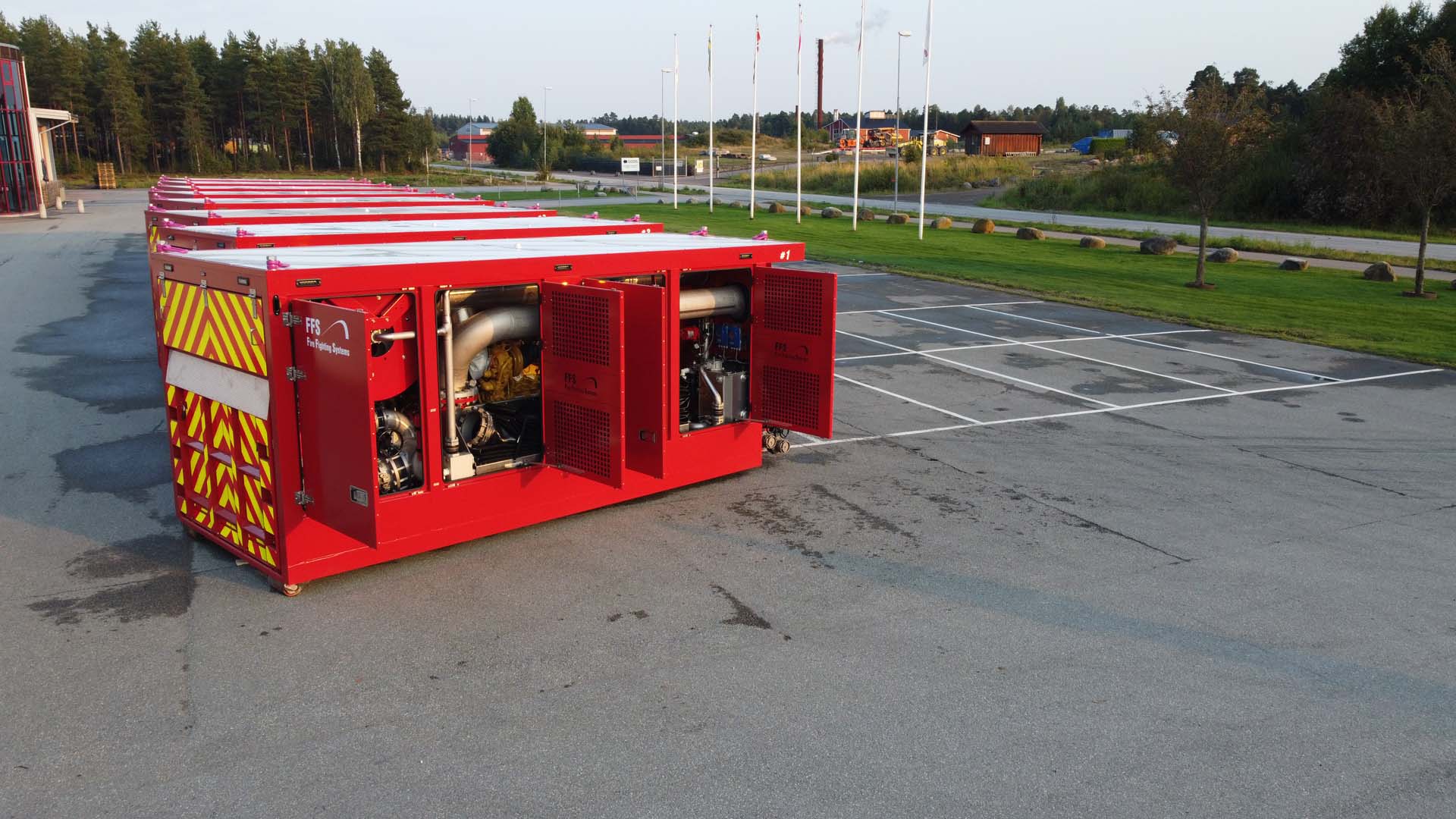

Delivering up to 46 000 LPM (12 000 GPM) at 10-12 bar (135-173 psi), it provides the capacity needed to supply monitor systems and support extended operations under high demand. Configured as a complete pump unit, it integrates diesel engine, fire pump, priming system, manifolds and controls into a single package.

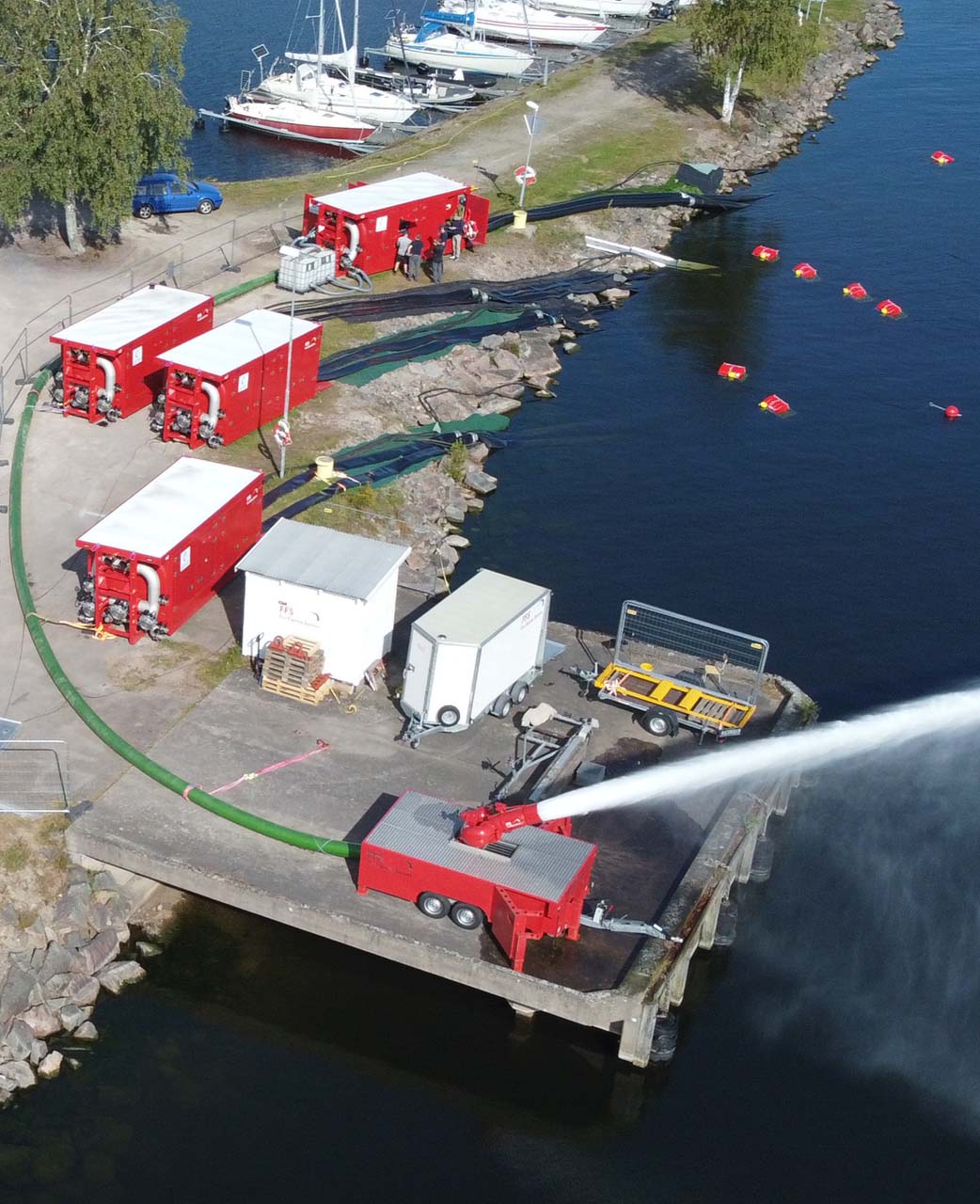

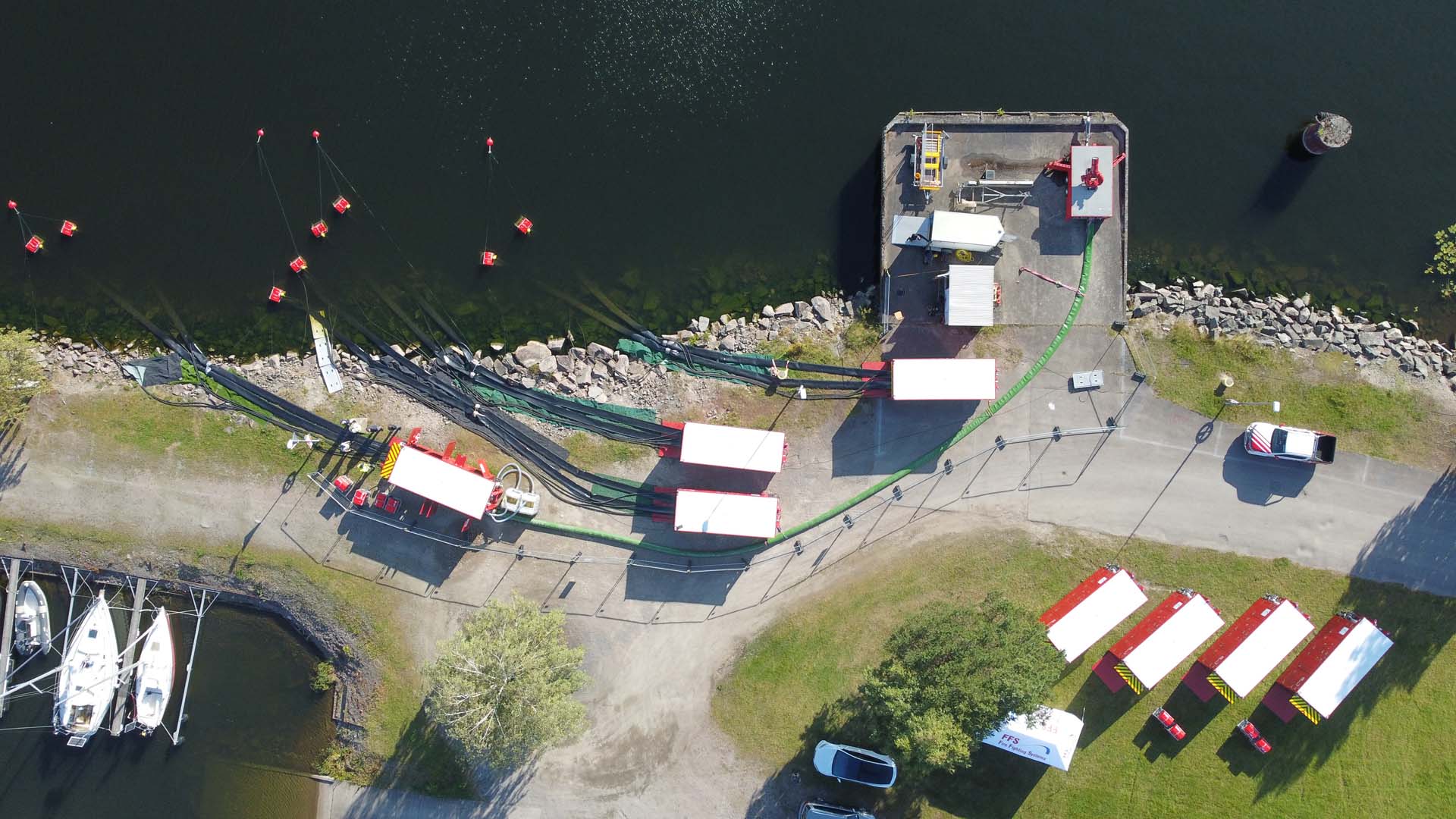

Despite its high output, the MPU 2400 remains practical for site deployment. With hooklift compatibility and a footprint of approximately 15 m², it can be transported, positioned and used as a flexible, reserve capacity for refineries, tank farms, terminals, ports and other critical industrial facilities.

Max Capacity

Up to 46 000 LPM
(12 000 GPM)

Pressure

10-12 bar
(145-173 psi)

Fuel Capacity

2 200 L

Inlet Connections

DN300 manifold (configurable)

Runtime

Approx. 6 hours (depending on load)

Weight

Approx. 14 000 kg

Pump Type

SFP 300×400

Priming System

Hydraulic submersible priming pump

High Flow. Sustained output

The MPU 2400 is engineered to deliver stable performance under sustained load, ensuring consistent flow and pressure during extended operation, reducing the risk of performance drop when demand increases.

A hydraulic submersible priming system supports reliable water sourcing, particularly in situations where suction conditions are challenging. Integrated hydraulic hose reels and manifolds reduce manual handling and simplify connection during setup.

The unit’s configuration keeps all key systems contained and protected, while still allowing easy access for maintenance. This supports dependable performance in demanding industrial environments.

Optional wireless remote operation allows the unit to be controlled from a safe distance when required. The system can also support foam application as part of industrial firefighting operations.

Key Benefits

01

Open-Water Sourcing Capability

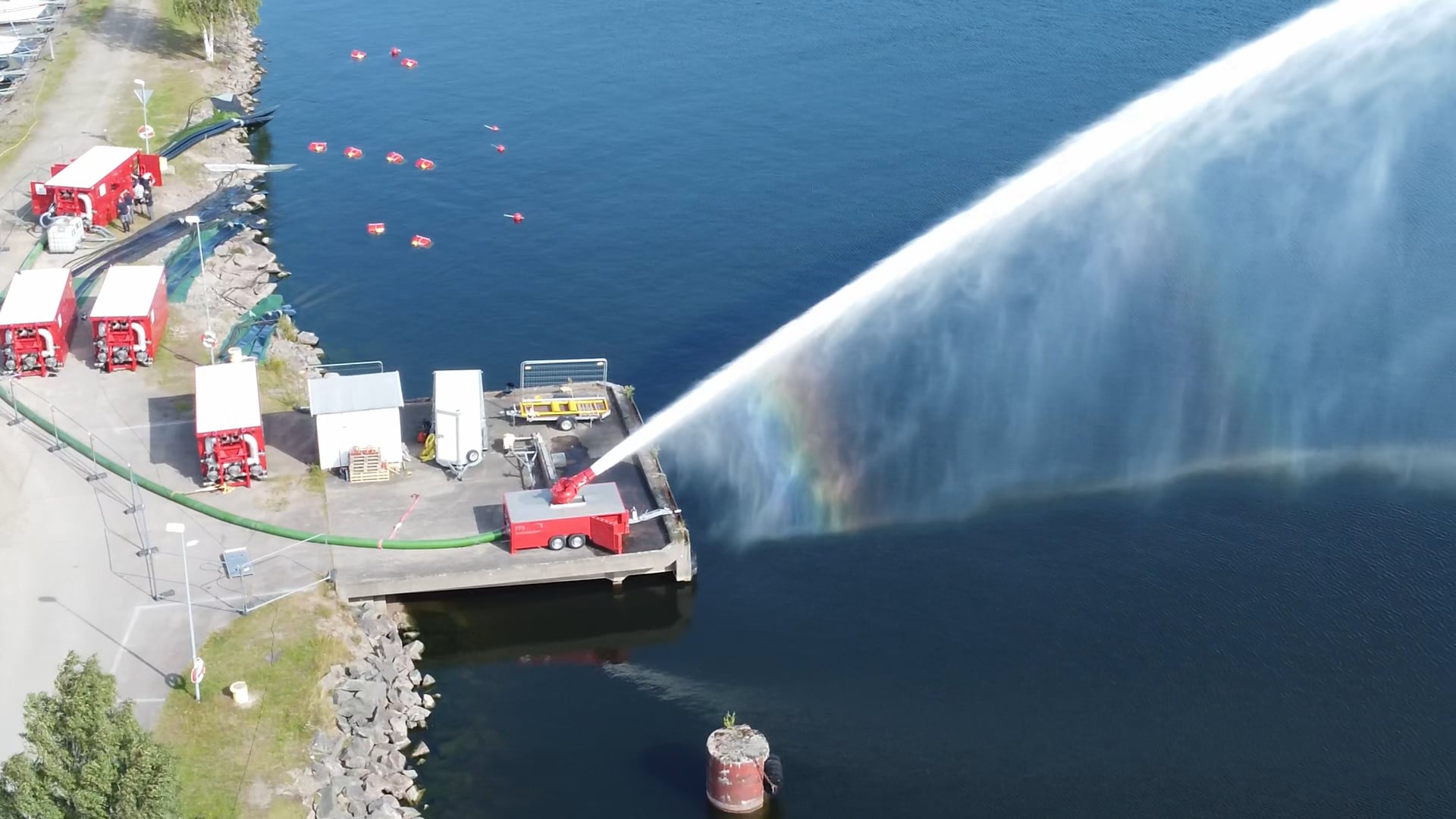

Integrated hydraulic submersible pump arrangement allows the unit to draw from available sea or fresh water sources when fixed firewater supply is limited, unavailable or under pressure.

02

High-Capacity Firewater Supply

Delivers up to 46 000 LPM (12 000 GPM) to support monitor trailers and large-scale firefighting operations during major incidents, planned shutdowns or periods of reduced firewater capacity.

03

Integrated All-in-One Package

Diesel engine, main pump, submersible pump, fuel tank, hose handling, manifolds and controls are combined into one containerised unit to reduce setup complexity.
