The MPU 1400 is designed for operations where flexibility is critical. It can support monitor systems, reinforce existing infrastructure, or operate independently when required.

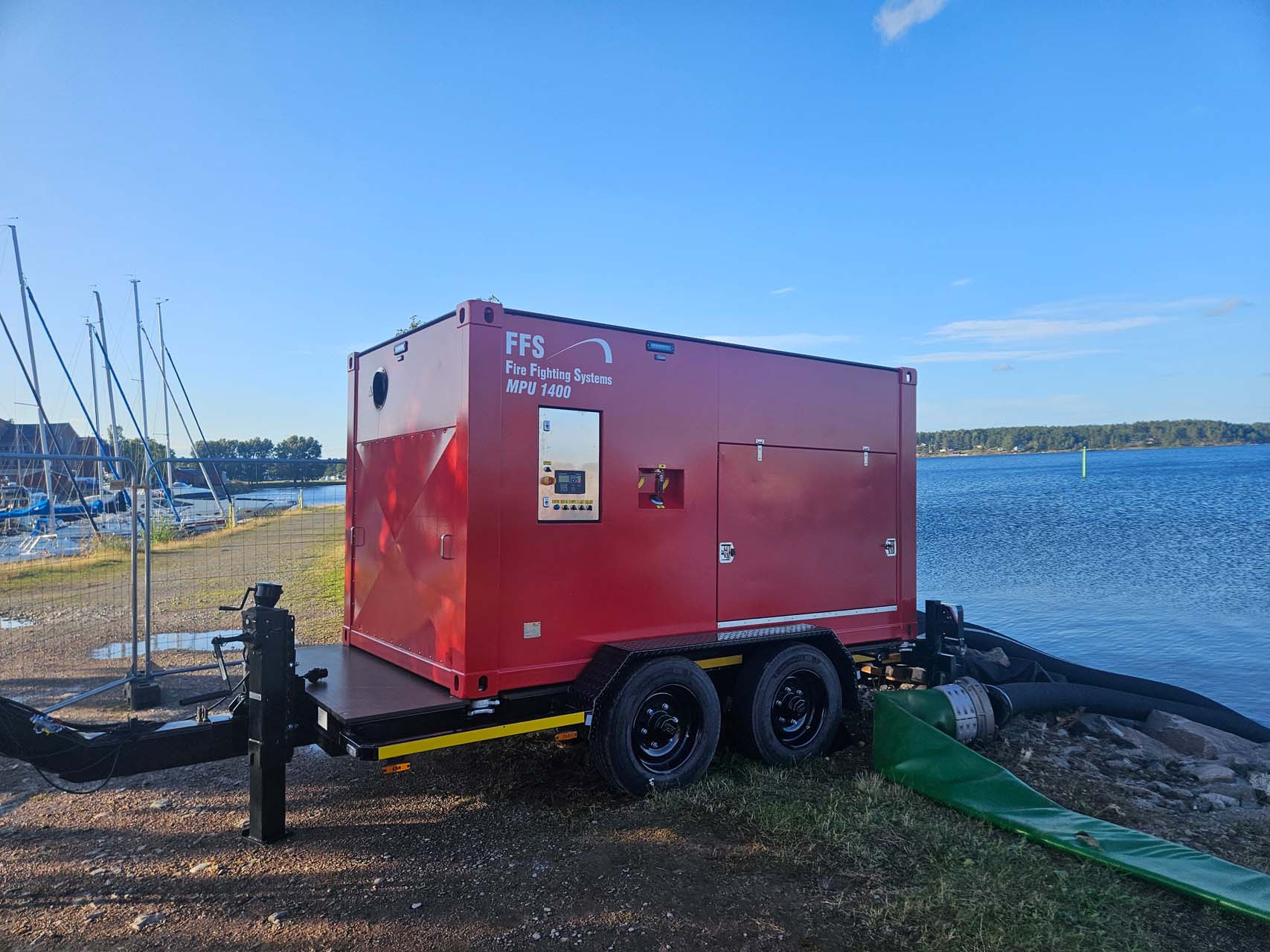

As a fully integrated unit, it can be deployed and brought into operation without complex setup, requiring no external equipment beyond hoses and discharge lines.The unit can operate both as a drafting pump from open water and as a booster connected to pressurised systems such as ring mains or hydrant networks. This allows it to adapt to different site conditions without changing equipment or configuration.

Mounted on a trailer, the MPU 1400 is straightforward to transport, position and connect using standard towing vehicles. It is suited to both planned deployment and situations where capacity needs to be introduced without delay.

Max Capacity

Up to 23 000 LPM
(6 000 GPM)

Pressure

10 bar
(145 psi)

Design Pressure

16 bar
(232 psi)

Fuel Capacity:

800 L
(~5 hours operation)

Max Capacity

Up to 30 000 LPM
(8 000 GPM) - With positive inlet pressure

Weight

Approx. 7700 kg

Priming

Dual electrical vacuum pumps

Inlet/Outlet

12" / 8" inlet options, multiple discharge outlets

Flexible Use Across Operations

The MPU 1400 provides dependable pumping capacity that can be introduced where it is needed, supporting existing systems or operating independently depending on the situation.

It can be used to boost pressure in established networks, maintain flow over distance, or supply monitors directly from available water sources. This makes it suitable for both planned system support and emergency response. When supplied with positive inlet pressure, the unit can achieve higher output of up to 30 000 LPM (8 000 GPM), providing additional capacity when integrated into existing systems.

Integrated priming and manifold systems allow operation from challenging suction conditions, helping establish flow without unnecessary delay.
